BRAND | Steimel |
Product | PSF2-16RD-172069R |
Description | gear pump |
Internal code | IMP4592305 |
Custom code | 84136039 |

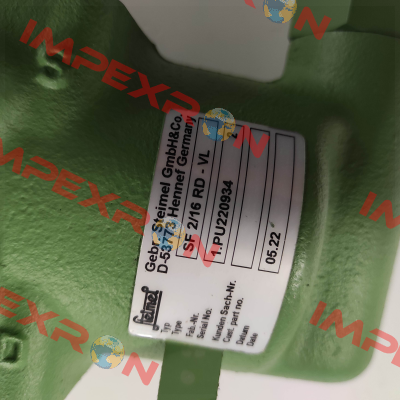

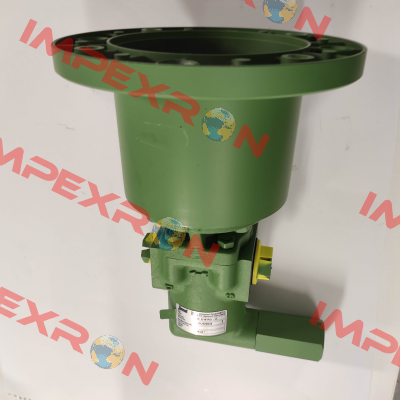

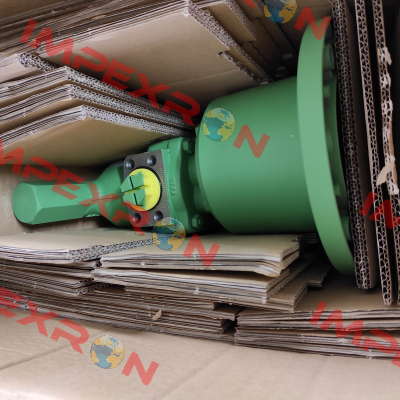

Technical specification | P-SF2/16RD-VL Gear Pump 2-20bar NBR, suitable for IEC 90, B3/B5 motor Gear pump: SF 2/16 RD - VL Product no.: PSF2-16RD-172069R Dimension sheet: DPA052D-090LMF-R33 Spare parts list: DET052016RD-050R Suction and pressure connection: G 1 materials: Body parts: EN-GJL 250 (GG-25) pinion shafts: 42CrMo4V, nitrided helical Storage: multi-layer MD Shaft seal: radial shaft seal Elastomers: NBR Pumping medium: OIL ISO VG 320 Viscosity: approx. 5000 cst. at cold start 5° C approx. 100 cst. at 60° C. Funding dates Q: approx. 22 l/min p: 10 bar n: 1450 rpm Pressure relief valve: 12 bar opening pressure Direction of rotation: right with coupling: BKUA040-1424-301 with pump support: BLA052200111LA11 p.f. motor size and design: IEC 90, B35 Paint: primer HDO058 - green Name plate: ETY924-D-E—PE01 Test run: yes, with HLPD 46 |
Please Contact Us to Order to offer competitive prices and delivery time for Steimel - PSF2-16RD-172069R gear pump number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Norway (Norge) Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
