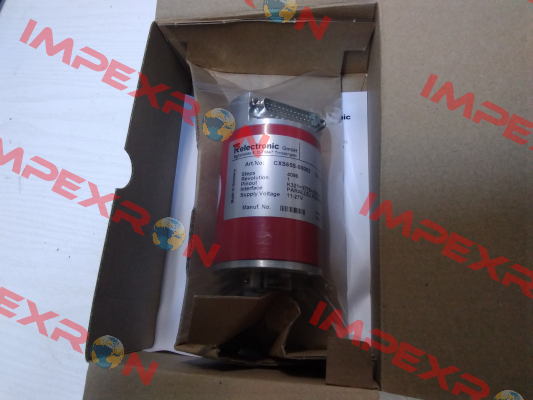

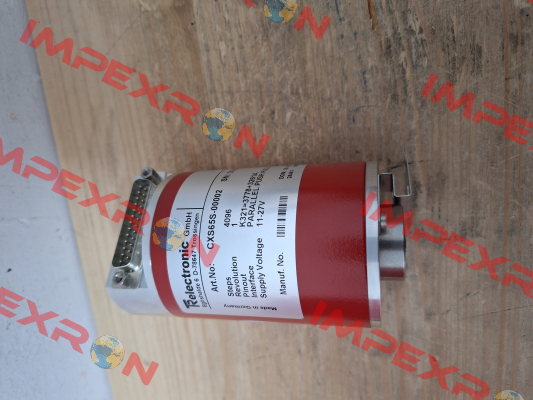

| BRAND | TR Electronic |
| Product | CXS65S-00002 |
| Description | ENCODER |
| Internal code | IMP5034095 |
| Custom code | 90318020 |
| Technical specification | CXS65S-00002 Absolute encoder CXS65S*4096/1 V000 PUSH PULL HW14 Total weight 0.550 kg Statistical product number: 90318020 Country of origin: GERMANY Region of origin: Baden-Württemberg AL:N ECCN:N Technical details appendix Order number description CXS65S-00002 CXS65S*4096/1 V000 PUSH PULL HW14 STEP COUNT 4,096,000 REVOLUTIONS 1,000 PARALLEL PUSH-PULL INTERFACE CODE GRAY SUPPLY VOLTAGE 11-27V OUTPUT LEVEL 11-27V PROTECTION CLASS IP65 WORKING TEMPERATURE 0-60°C SHAFT DESIGN 14H7 HOLLOW SACK SHAFT SUBD 15P CONNECTION SUBD 25P CONNECTION DIRECTION ANGLED 90° PIN ASSIGNMENT NUMBER K321=3778+3261A MATCHING PLUG NO OPTION ENC INCL. TRACKS: 4000 IMP (5V) K0+K1+K2+NEG V/R DRAWING NUMBER 04-CXS65S-M0002 VERSION NO. 000 SOFTNR 701520 DOCUMENTATION NO. DOCUMENTS AL: N ECCN: N |
Discover the superior quality and performance of the TR Electronic CXS65S-00002 with Impexron GMBH in Norway (Norge) . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The CXS65S-00002 is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of CXS65S-00002 :
At Impexron GMBH , we offer the CXS65S-00002 at competitive prices and with the fastest delivery times across Norway (Norge) . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Impexron GMBH ?
Get Your Quote Today! Ready to enhance your operations with the CXS65S-00002 ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply TR Electronic products, Impexron GMBH is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
